| Δ

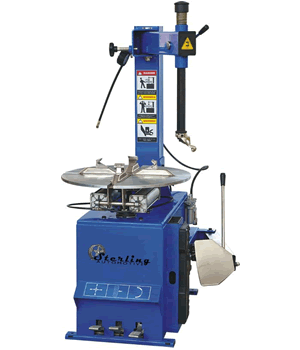

PRO-4 |
|
| |
 |
|
- With
self-centering
function
|
- With adjusting &
calibrating
functions in the 4
clamps on the
turntable
|
- Rubber-pad
mount/demount head
|
- Angles of
mount/demount head
can be adjusted &
calibrated
|
- Technology of
this type from Italy
|
| |
|
|
| |
| TECHNICAL DATA |
| |
| |
Power supply/ Motor power |
|
110V/220V/380V 1.1/0.75KW |
| |
|
|
|
| |
Pneumatic supply |
|
0.8-1.2MPa |
| |
|
|
|
| |
Rim Clamping range (External) |
|
10" - 20" |
| |
|
|
|
| |
Rim Clamping range (Internal) |
|
12" - 22" |
| |
|
|
|
| |
Bead loosening force |
|
2500kg |
| |
|
|
|
| |
Max. wheel diamater |
|
950mm |
| |
|
|
|
| |
Max. wheel width |
|
13" |
| |
|
|
|
| |
Noise: |
|
<70db |
| |
|
|
|
| |
N.W./G.W. |
|
190kg/221kg |
| |
|
|
|
| |
Shipping Dimensions |
|
980 x 760 x 840 (mm) |
| |
|
|
|
|
| |
|
